018d - Google OAuth Login

This lesson is the dedicated Google login upgrade that was intentionally moved out of 018a so the login-shell lesson stays simple.

Goal

Upgrade the existing LoginActivity flow from Email/Password-only (or login shell) to support:

• Google account picker
• Firebase Authentication with Google credential
• Correct SHA1 setup so emulator/device login works reliably

Prerequisites

• 018a.LoginActivityFromGui.md completed (login UI shell exists)
• 018b.FirebaseProjectRtdbAuthSetup.md completed (Firebase project + Auth + RTDB setup)
• 018c completed or equivalent Email/Password auth wiring in place

Reference implementation (local)

• Presence commit: 11c8948681e84158c24528eda64c2125804e1499
• Commit message note (important): generate debug SHA1 and add fingerprint

What gets added in this lesson

1. Pre-coding Firebase setup for Google login runtime success:
   • enable Google provider in Firebase Authentication
   • add SHA1 fingerprint for the signing certificate you are using
   • download/update google-services.json that matches your exact app package
2. Google Sign-In dependency (play-services-auth)
3. Google sign-in client initialization using default_web_client_id
4. Google account picker launch and result handling
5. GoogleAuthProvider.getCredential(...)
6. Firebase signInWithCredential(...)
7. (Optional but recommended) extend the drawer Disconnect flow to sign out the Google client too

Lesson split (early-bird friendly)

Part A - Code wiring (can be completed before SHA1)

Students can complete and commit the code wiring part first:

• dependency
• Firebase Console Google provider enable
• updated google-services.json
• FBRef Google client init
• LoginActivity Google button + Firebase credential flow

This part can compile and be reviewed before SHA1 is configured.

If the goal is first successful Google login as early as possible, do the Firebase pre-coding setup in Step 1 first (enable Google provider + SHA1 + refreshed matching google-services.json), then start coding.

Part B - SHA1 + runtime validation

Google Sign-In runtime success usually requires SHA1 configured for the signing certificate used by the installed app.

That is the part that often blocks emulator/device testing, not the code itself.

This split lets early birds qualify the first part of the lesson (code + setup wiring) while others are still handling SHA1.

Step 1 - Before coding: Firebase setup for Google login runtime success

018b intentionally stopped at Email/Password only. For Google login to actually work at runtime, the tested order that avoids most confusion is:

1. Enable Google provider in Firebase Authentication

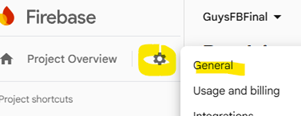

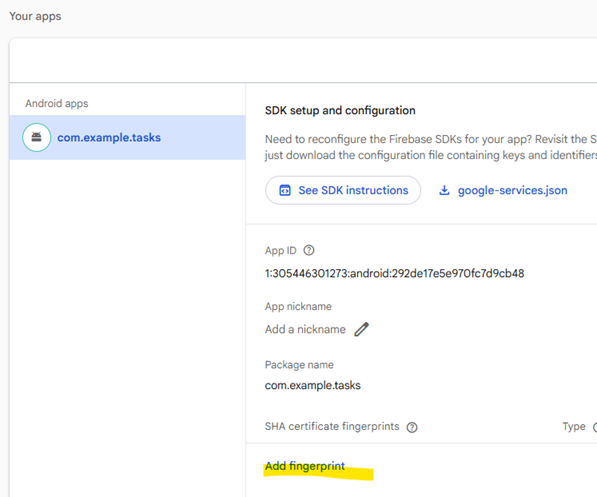

2. Add SHA1 fingerprint for the certificate signing your build
3. Download an updated google-services.json that matches your exact package name

Choose the variant that matches your situation:

"C:\Program Files\Android\Android Studio\jbr\bin\keytool.exe" -list -v -keystore "%USERPROFILE%\.android\debug.keystore" -alias androiddebugkey -storepass android -keypass android

"C:\Program Files\Android\Android Studio\jbr\bin\keytool.exe" -genkeypair -v -keystore "C:\Classroom\class-debug.keystore" -storepass android -alias androiddebugkey -keypass android -keyalg RSA -keysize 2048 -validity 10000 -dname "CN=Android Debug,O=Android,C=US"

"C:\Program Files\Android\Android Studio\jbr\bin\keytool.exe" -list -v -keystore "C:\Classroom\class-debug.keystore" -alias androiddebugkey -storepass android -keypass android

$targetDir = "$env:USERPROFILE\.android"
New-Item -ItemType Directory -Force $targetDir | Out-Null

if (Test-Path "$targetDir\debug.keystore") {
    Copy-Item "$targetDir\debug.keystore" "$targetDir\debug.keystore.backup" -Force
}

Copy-Item "E:\Temp\FromTeacher\debug.keystore" "$targetDir\debug.keystore" -Force

"C:\Program Files\Android\Android Studio\jbr\bin\keytool.exe" -list -v -keystore "$env:USERPROFILE\.android\debug.keystore" -alias androiddebugkey -storepass android -keypass android

If these three items are correct (Google provider + SHA1 + matching updated google-services.json), the later code steps usually work with much less debugging.

Why this step comes before coding (practical note)

If this setup is missing, students can write the code correctly and still hit:

• missing default_web_client_id
• Google Sign-In failure code 10 / Developer_Error
• package mismatch errors from the wrong google-services.json

You can still code first (Part A), but this pre-step is the fastest path to a successful demo.

Refreshing google-services.json matters here because the Google Sign-In flow needs default_web_client_id, which is generated from this file.

Step 2 - Add Google Sign-In dependency

Edit app/build.gradle and add:

 dependencies {
     implementation platform('com.google.firebase:firebase-bom:34.1.0')
     implementation 'com.google.firebase:firebase-auth'
     implementation 'com.google.firebase:firebase-database'
+
+    implementation 'com.google.android.gms:play-services-auth:21.4.0' // or newer if Android Studio suggests

     ...
 }

Sync Gradle.

Step 3 - Extend FBRef (under services) for Google Sign-In client

Edit:

• app/src/main/java/com/example/tictacmenu/services/FBRef.java

Add imports:

+import android.content.Context;
+import android.util.Log;
+
+import com.example.tictacmenu.R;
+import com.google.android.gms.auth.api.signin.GoogleSignIn;
+import com.google.android.gms.auth.api.signin.GoogleSignInClient;
+import com.google.android.gms.auth.api.signin.GoogleSignInOptions;

Add a Google client field:

 public final class FBRef {

     public static final FirebaseAuth refAuth = FirebaseAuth.getInstance();
     public static final FirebaseDatabase FBDB = FirebaseDatabase.getInstance();
     public static final DatabaseReference refUsers = FBDB.getReference("Users");
+
+    public static GoogleSignInClient googleSignInClient;

Add initialization + Google sign-out helper methods:

public static void initializeGoogleSignIn(Context context) {
    try {
        String webClientId = context.getString(R.string.default_web_client_id);

        GoogleSignInOptions gso = new GoogleSignInOptions.Builder(GoogleSignInOptions.DEFAULT_SIGN_IN)
                .requestIdToken(webClientId)
                .requestEmail()
                .build();

        googleSignInClient = GoogleSignIn.getClient(context, gso);
    } catch (Exception e) {
        Log.e("FBRef", "Failed to initialize Google Sign-In client", e);
        googleSignInClient = null;
    }
}

public static void signOutGoogle() {
    if (googleSignInClient != null) {
        googleSignInClient.signOut();
    }
}

If default_web_client_id is missing, this usually means the google-services.json is outdated or from the wrong Firebase app package.

Step 4 - Wire Google login in LoginActivity

Edit:

• app/src/main/java/com/example/tictacmenu/activities/LoginActivity.java

4.1 Add imports

 import android.content.Intent;
 import android.content.SharedPreferences;
 import android.os.Bundle;
 import android.text.TextUtils;
 import android.view.View;
 import android.widget.Button;
 import android.widget.CheckBox;
 import android.widget.EditText;
 import android.widget.Toast;

 import androidx.activity.EdgeToEdge;
 import androidx.appcompat.app.AppCompatActivity;
 ...

 import com.example.tictacmenu.services.FBRef;
 import com.example.tictacmenu.R;
 import com.example.tictacmenu.shell.MenuActivity;
+import com.google.android.gms.auth.api.signin.GoogleSignIn;
+import com.google.android.gms.auth.api.signin.GoogleSignInAccount;
+import com.google.android.gms.common.api.ApiException;
+import com.google.android.gms.tasks.Task;
+import com.google.firebase.auth.AuthCredential;
 import com.google.firebase.auth.FirebaseUser;
+import com.google.firebase.auth.GoogleAuthProvider;

4.2 Add fields

 public class LoginActivity extends AppCompatActivity {

+    private static final int RC_GOOGLE_SIGN_IN = 9001;
     private static final String PREFS_NAME = "PREFS_NAME";
     private static final String KEY_STAY_CONNECT = "stayConnect";

     private SharedPreferences settings;
     private CheckBox cBstayconnect;
     private EditText eTemail;
     private EditText eTpass;
     private Button btnLogin;
+    private Button btnGoogleSignIn;
     private boolean loginInProgress;

4.3 Initialize Google client and button reference

In initViews():

 private void initViews() {
     cBstayconnect = findViewById(R.id.cBstayconnect);
     eTemail = findViewById(R.id.eTemail);
     eTpass = findViewById(R.id.eTpass);
     btnLogin = findViewById(R.id.btn);
+    btnGoogleSignIn = findViewById(R.id.btnGoogleSignIn);
 }

In onCreate(...), after initViews() and before the user can click the button, initialize Google:

 settings = getSharedPreferences(PREFS_NAME, MODE_PRIVATE);
 initViews();
+
+FBRef.initializeGoogleSignIn(this);

4.4 Replace onGoogleLoginClick(...)

Replace the temporary toast with:

public void onGoogleLoginClick(View view) {
    if (loginInProgress) return;

    if (FBRef.googleSignInClient == null) {
        Toast.makeText(this, "Google Sign-In is not configured yet (check google-services.json)", Toast.LENGTH_LONG).show();
        return;
    }

    Intent signInIntent = FBRef.googleSignInClient.getSignInIntent();
    startActivityForResult(signInIntent, RC_GOOGLE_SIGN_IN);
}

4.5 Handle Google sign-in result + Firebase credential login

Add these methods to LoginActivity:

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    super.onActivityResult(requestCode, resultCode, data);

    if (requestCode != RC_GOOGLE_SIGN_IN) return;

    if (data == null) {
        Toast.makeText(this, "Google sign-in canceled", Toast.LENGTH_SHORT).show();
        return;
    }

    Task<GoogleSignInAccount> task = GoogleSignIn.getSignedInAccountFromIntent(data);
    handleGoogleSignInResult(task);
}

private void handleGoogleSignInResult(Task<GoogleSignInAccount> task) {
    try {
        GoogleSignInAccount account = task.getResult(ApiException.class);
        if (account == null || account.getIdToken() == null) {
            Toast.makeText(this, "Google sign-in failed: missing ID token", Toast.LENGTH_LONG).show();
            return;
        }

        firebaseAuthWithGoogle(account.getIdToken());
    } catch (ApiException e) {
        Toast.makeText(this, "Google sign-in failed (code " + e.getStatusCode() + ")", Toast.LENGTH_LONG).show();
    }
}

private void firebaseAuthWithGoogle(String idToken) {
    setLoginInProgress(true);

    AuthCredential credential = GoogleAuthProvider.getCredential(idToken, null);
    FBRef.refAuth.signInWithCredential(credential)
            .addOnCompleteListener(this, task -> {
                setLoginInProgress(false);

                if (task.isSuccessful()) {
                    FirebaseUser currentUser = FBRef.refAuth.getCurrentUser();
                    if (currentUser == null) {
                        Toast.makeText(this, "Google login succeeded but no user was returned", Toast.LENGTH_SHORT).show();
                        return;
                    }

                    FBRef.getUser(currentUser);
                    settings.edit().putBoolean(KEY_STAY_CONNECT, cBstayconnect.isChecked()).apply();
                    Toast.makeText(this, "Google login success", Toast.LENGTH_SHORT).show();
                    openMenu();
                    return;
                }

                String errorMessage = task.getException() != null
                        ? task.getException().getLocalizedMessage()
                        : "Google Firebase auth failed";

                Toast.makeText(this, "Google login failed: " + errorMessage, Toast.LENGTH_LONG).show();
            });
}

4.6 (Optional polish) Disable the Google button while login is in progress

If you want the same “busy” behavior for both login buttons, update setLoginInProgress(...):

 private void setLoginInProgress(boolean inProgress) {
     loginInProgress = inProgress;
     btnLogin.setEnabled(!inProgress);
+    if (btnGoogleSignIn != null) btnGoogleSignIn.setEnabled(!inProgress);
     btnLogin.setText(inProgress ? "Logging in..." : "Login");
 }

Keep the email/password login flow intact. 018d is an additive upgrade, not a replacement.

Recommended Git checkpoint (Part A complete - before SHA1 runtime testing):

• Code compiles
• Google provider enabled
• Correct google-services.json in place
• Google button launches sign-in attempt (it may still fail with SHA1-related error)

Example commit message:

• 018d: wire Google sign-in client and Firebase credential login

Step 5 - If you added drawer disconnect in 018c, extend it for Google sign-out too

This avoids a confusing state where Firebase signs out but Google account picker still auto-selects the last account.

In MenuActivity.logoutAndOpenLogin(), add:

 private void logoutAndOpenLogin() {
     SharedPreferences settings = getSharedPreferences("PREFS_NAME", MODE_PRIVATE);
     settings.edit().putBoolean("stayConnect", false).apply();

+    FBRef.signOutGoogle();
     FBRef.refAuth.signOut();

     Intent intent = new Intent(this, LoginActivity.class);
     ...
 }

SHA1 clarification (important)

Question:

Can students skip SHA1 if they test on a physical device instead of an emulator?

Answer (important correction):

• No, not just because it is a physical device.
• For Google Sign-In, Firebase/Google OAuth still checks the signing certificate fingerprint (SHA1, and preferably also SHA-256) of the app build.
• This applies to emulator and physical device.

What can be skipped temporarily:

• Students can finish Part A (code wiring) and commit it before SHA1 is configured.
• Some early birds may also pass runtime testing without doing the SHA1 step themselves if the fingerprint is already registered (for example: teacher shared debug keystore, or their machine SHA1 was already added earlier).

Typical failure when SHA1 is missing for Google Sign-In:

• Developer_Error / status code 10 (or a Google sign-in failure code shown in your toast)

Teaching implication:

• Do not block 018b/018c on SHA1.
• Introduce SHA1 only when Google Sign-In is added.
• Treat physical-device testing as helpful, but not as a guaranteed SHA1 bypass.

Step 6 - keytool support note (if the SHA command fails)

The SHA1 command is shown inside the relevant Step 1 variant (Variant A for autonomous setup, and verification commands in Variant B teacher/shared flow).

If the command fails because keytool is missing:

keytool is not a built-in Windows 11 command.

• It comes with a Java JDK installation.
• It is also bundled with Android Studio (which is why this lesson uses the Android Studio jbr path directly).
• If Android Studio is installed, students usually do not need any extra download for this step.

Try:

1. where keytool
2. If not found, install one of these and retry:
   • Android Studio (includes bundled Java runtime/tools): https://developer.android.com/studio/install
   • OpenJDK (Temurin): https://adoptium.net/temurin/releases/

Step 7 - Runtime validation checklist (Google Sign-In)

Before testing, confirm all of these:

• Google provider enabled in Firebase Authentication
• google-services.json matches your app package
• default_web_client_id exists (generated from google-services.json)
• play-services-auth dependency added
• Correct SHA1 registered for the keystore signing this build (unless it was already registered earlier)

Emulator checklist

• Use an emulator image with Google Play support
• Google Play Services is available and updated

Physical device checklist

• Device has a Google account signed in (or can sign in during picker flow)
• The installed build is signed with a cert whose fingerprint is already registered in Firebase (debug or release, depending on what you installed)

Expected success flow:

1. Tap Login with Google
2. Account picker opens
3. Choose account
4. App returns to LoginActivity
5. Firebase signInWithCredential(...) succeeds
6. App opens MenuActivity

Recommended Git checkpoint (after first successful Google login):

• Commit (and push) after you verify Google login success and the disconnect/logout flow still returns to LoginActivity.

Example commit message:

• 018d: add Google sign-in (OAuth) with Firebase credential login

Troubleshooting

default_web_client_id cannot be resolved

Usually means one of these:

• google-services.json is missing
• google-services.json is from the wrong Firebase Android app package
• Google Services plugin is not applied
• You enabled Google provider but did not re-download google-services.json

Google sign-in fails with code 10 / Developer_Error

Most common cause:

• Missing SHA1 for the certificate that signed this build

This can happen on:

• emulator
• physical device

Fix:

1. Print the SHA1 of the keystore used for the build
2. Add it in Firebase Project settings -> Android app -> SHA fingerprints
3. Rebuild and rerun

No matching client found for package name ...

This is the package mismatch issue (copied google-services.json from another app package).

Use the fix in:

• 018b Step 3.1 / 3.2

Google button opens then returns without login

Possible causes:

• User canceled account picker (not a bug)
• Google Play Services issue on emulator
• Google provider disabled in Firebase Auth
• SHA1 mismatch / missing (often code 10)

Out of scope for this page (can stay in later code lesson if needed)

• Full production-ready account linking flows (Email/Password <-> Google)
• One Tap / Credential Manager migration
• Security rules design
