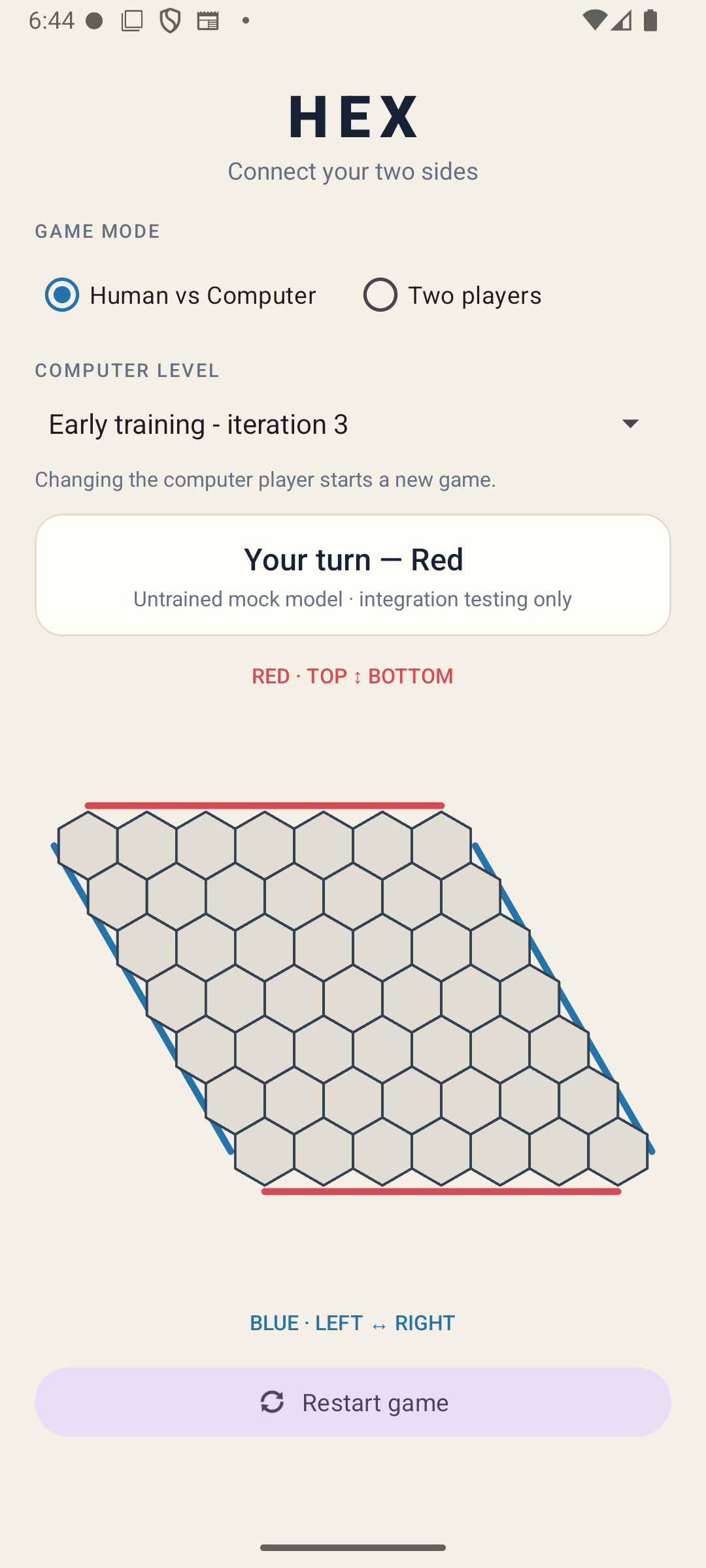

בסוף הפרק: אפשר לבחור אחד משישה שחקני מחשב. כל בחירה מתחילה משחק חדש.
הרעיון
model_catalog.json קובע את סדר השחקנים בתפריט ואת הנתיב המדויק לזוג קובצי מודל ומטא־דאטה. ModelCatalog בודקת גרסה, מזהים ייחודיים ונתיבי נכסים. החלפת שחקן מתבצעת ברקע, מאפסת משחק ופוסלת טעינה/תשובה ישנה. אם הזוג שנבחר פגום, המסך מציג שהמחשב לא זמין; מצב שני שחקנים ממשיך לעבוד. מספר איטרציות הוא שם checkpoint, לא דירוג עוצמה.
מתחילים מהמצב שעבד
המשיכו בפרויקט שבו השלמתם את פרק 6. השאירו ללא שינוי קובצי תבנית שאינם מוזכרים כאן. שורות - ב־diff מוחלפות ב־+; שורות הקשר נשארות. קובץ חדש מוצג במלואו.
הורידו את חבילת שחקני המורה ופרשו את תיקיות players/ תחת app > assets. בכל תיקייה יש שני קבצים ששייכים זה לזה: hex_value_v1.tflite ו־model_info.json. הם כבר מוכנים לשימוש; אין צורך לאמן מודלים.
עורכים את הקבצים
עבדו לפי סדר התלות: משאבים ותלויות לפני קוד שמפנה אליהם; מחלקת חוקים לפני ה־Activity. השתמשו בדיפים המוצגים בעמוד; במעבר עליהם אל תקלידו את סמלי + ו־- עצמם.
ModelCatalog.java
מיקום: app > kotlin+java > com.example.hex. קורא את JSON הנכסים, מאמת את השורות ומחזיר אותן בסדר התפריט.
פתחו את השינוי המלא ב־ModelCatalog.java
package com.example.hex;
import android.content.Context;
import androidx.annotation.NonNull;
import org.json.JSONArray;
import org.json.JSONObject;
import java.io.InputStreamReader;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.Collections;
import java.util.HashSet;
import java.util.List;
import java.util.Set;
/**
* Loads the available bundled computer-player levels from the asset catalog.
*
* <p>Preserved training checkpoints can be exposed by adding entries to the catalog asset.
*/
public final class ModelCatalog {
/** Asset containing the list of bundled model levels. */
public static final String CATALOG_ASSET = "model_catalog.json";
private static final int CATALOG_VERSION = 1;
private ModelCatalog() {
}
/**
* Loads and validates all model levels in the bundled catalog.
*
* @param context Android context used to open application assets
* @return an unmodifiable, non-empty list in catalog order
* @throws Exception if the catalog cannot be read or does not satisfy its contract
*/
public static List<Level> load(Context context) throws Exception {
JSONObject catalog = readJson(context);
if (catalog.getInt("catalog_version") != CATALOG_VERSION) {
throw new IllegalArgumentException("Unsupported model catalog version");
}
JSONArray entries = catalog.getJSONArray("levels");
if (entries.length() == 0) {
throw new IllegalArgumentException("Model catalog must contain at least one level");
}
List<Level> levels = new ArrayList<>(entries.length());
Set<String> ids = new HashSet<>();
for (int i = 0; i < entries.length(); i++) {
JSONObject entry = entries.getJSONObject(i);
Level level = new Level(
requiredText(entry, "id"),
requiredText(entry, "label"),
requiredText(entry, "description"),
checkedAssetPath(requiredText(entry, "model_asset"), ".tflite"),
checkedAssetPath(requiredText(entry, "metadata_asset"), ".json"));
if (!level.id.matches("[a-z0-9][a-z0-9-]*") || !ids.add(level.id)) {
throw new IllegalArgumentException("Model catalog level IDs must be unique slugs");
}
levels.add(level);
}
return Collections.unmodifiableList(levels);
}
private static String requiredText(JSONObject object, String name) throws Exception {
String value = object.getString(name).trim();
if (value.isEmpty()) {
throw new IllegalArgumentException("Model catalog field is empty: " + name);
}
return value;
}
private static String checkedAssetPath(String path, String suffix) {
if (path.startsWith("/") || path.contains("\\") || !path.endsWith(suffix)) {
throw new IllegalArgumentException("Invalid model catalog asset path: " + path);
}
for (String segment : path.split("/")) {
if (segment.isEmpty() || ".".equals(segment) || "..".equals(segment)) {
throw new IllegalArgumentException("Invalid model catalog asset path: " + path);
}
}
return path;
}
private static JSONObject readJson(Context context) throws Exception {
StringBuilder jsonText = new StringBuilder();
try (InputStreamReader reader = new InputStreamReader(
context.getAssets().open(CATALOG_ASSET), StandardCharsets.UTF_8)) {
char[] buffer = new char[1024];
int count;
while ((count = reader.read(buffer)) != -1) {
jsonText.append(buffer, 0, count);
}
}
return new JSONObject(jsonText.toString());
}
/** Describes one selectable computer-player model and its bundled assets. */
public static final class Level {
/** Stable slug that uniquely identifies the level. */
public final String id;
/** Short user-facing level name. */
public final String label;
/** User-facing explanation of the model or checkpoint. */
public final String description;
/** Relative asset path to the TFLite model. */
public final String modelAsset;
/** Relative asset path to the model metadata JSON. */
public final String metadataAsset;
private Level(String id, String label, String description,
String modelAsset, String metadataAsset) {
this.id = id;
this.label = label;
this.description = description;
this.modelAsset = modelAsset;
this.metadataAsset = metadataAsset;
}
@Override
@NonNull
public String toString() {
return label;
}
}
}
activity_main.xml
מיקום: app > res > layout. עורכים דרך app > res > layout בתצוגת Code. אין למחוק רכיבי תבנית שאינם ב־diff.
android:text="@string/human_vs_human" />
</RadioGroup>
+ <LinearLayout
+ android:id="@+id/computerLevelContainer"
+ android:layout_width="match_parent"
+ android:layout_height="wrap_content"
+ android:layout_marginBottom="12dp"
+ android:orientation="vertical">
+
+ <TextView
+ android:layout_width="match_parent"
+ android:layout_height="wrap_content"
+ android:fontFamily="sans-serif-medium"
+ android:letterSpacing="0.1"
+ android:text="@string/computer_level_label"
+ android:textColor="@color/muted"
+ android:textSize="11sp" />
+
+ <Spinner
+ android:id="@+id/computerLevelSpinner"
+ android:layout_width="match_parent"
+ android:layout_height="48dp"
+ android:contentDescription="@string/computer_level_label"
+ android:spinnerMode="dropdown" />
+
+ <TextView
+ android:layout_width="match_parent"
+ android:layout_height="wrap_content"
+ android:text="@string/computer_levels_pending"
+ android:textColor="@color/muted"
+ android:textSize="12sp" />
+ </LinearLayout>
+
<com.google.android.material.card.MaterialCardView
android:layout_width="match_parent"
android:layout_height="wrap_content"
model_catalog.json
מיקום: app > assets. הוסיפו שורה רק לאחר שקיבלתם זוג model/metadata מתאים. השורה הראשונה היא ברירת המחדל.
סדר השורות הוא סדר ה־Spinner: early-test, trained-000010, trained-000100, trained-001000, trained-002620, trained-005000. זהו הסדר של הייחוס הנוכחי.
{
"catalog_version": 1,
"levels": [
{
"id": "early-test",
"label": "Early training - iteration 3",
"description": "Only 3 training iterations; strength not established",
"model_asset": "players/early-test/hex_value_v1.tflite",
"metadata_asset": "players/early-test/model_info.json"
},
{
"id": "trained-000010",
"label": "Trained — iteration 10",
"description": "A100 self-play training ·10 iterations · fully offline",
"model_asset": "players/trained-000010/hex_value_v1.tflite",
"metadata_asset": "players/trained-000010/model_info.json"
},
{
"id": "trained-000100",
"label": "Trained — iteration 100",
"description": "A100 self-play training ·100 iterations · fully offline",
"model_asset": "players/trained-000100/hex_value_v1.tflite",
"metadata_asset": "players/trained-000100/model_info.json"
},
{
"id": "trained-001000",
"label": "Trained — iteration 1000",
"description": "A100 self-play training ·1000 iterations · fully offline",
"model_asset": "players/trained-001000/hex_value_v1.tflite",
"metadata_asset": "players/trained-001000/model_info.json"
},
{
"id": "trained-002620",
"label": "Trained — iteration 2,620",
"description": "A100 self-play training · 2,620 iterations · fully offline",
"model_asset": "players/trained-002620/hex_value_v1.tflite",
"metadata_asset": "players/trained-002620/model_info.json"
},
{
"id": "trained-005000",
"label": "Trained — iteration 5,000",
"description": "A100 self-play training ·5,000 iterations · fully offline",
"model_asset": "players/trained-005000/hex_value_v1.tflite",
"metadata_asset": "players/trained-005000/model_info.json"
}
]
}
MainActivity.java
מיקום: app > kotlin+java > com.example.hex. ה־Activity מחברת בין View Binding, המשחק, הפקדים ועבודת המחשב. השאירו את הקוד שאינו מוצג ב־diff.
פתחו את השינוי המלא ב־MainActivity.java
package com.example.hex;
import android.os.Bundle;
+import android.view.View;
+import android.widget.AdapterView;
+import android.widget.ArrayAdapter;
+
import androidx.activity.EdgeToEdge;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;
+
import com.example.hex.databinding.ActivityMainBinding;
+
+import java.util.Collections;
+import java.util.List;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;
+import java.util.concurrent.atomic.AtomicInteger;
-/** Coordinates human moves and an offline computer reply. */
+/** Hosts the game screen and coordinates board input, model loading, and background AI turns. */
public final class MainActivity extends AppCompatActivity {
private ActivityMainBinding binding;
private HexGame game;
private TfliteValueModel valueModel;
private ExecutorService aiExecutor;
private Future<?> aiTask;
+ private List<ModelCatalog.Level> computerLevels = Collections.emptyList();
+ private ModelCatalog.Level selectedLevel;
private boolean vsAi = true;
private boolean aiThinking;
private boolean modelLoading;
private int gameGeneration;
+ private final AtomicInteger modelSelectionGeneration = new AtomicInteger();
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
EdgeToEdge.enable(this);
+
binding = ActivityMainBinding.inflate(getLayoutInflater());
setContentView(binding.getRoot());
+
ViewCompat.setOnApplyWindowInsetsListener(binding.main, (v, insets) -> {
Insets systemBars = insets.getInsets(WindowInsetsCompat.Type.systemBars());
v.setPadding(systemBars.left, systemBars.top, systemBars.right, systemBars.bottom);
return insets;
});
+
aiExecutor = Executors.newSingleThreadExecutor();
game = new HexGame();
+
+ binding.modeAi.setChecked(vsAi);
+ binding.modeHuman.setChecked(!vsAi);
+ binding.boardView.setGame(game);
binding.boardView.setOnCellClickListener(this::onCellClicked);
binding.restartButton.setOnClickListener(view -> restartGame());
- binding.modeAi.setChecked(true);
binding.modeGroup.setOnCheckedChangeListener((group, checkedId) -> {
boolean requestedAi = checkedId == R.id.modeAi;
if (requestedAi != vsAi) {
vsAi = requestedAi;
+ binding.computerLevelContainer.setVisibility(vsAi ? View.VISIBLE : View.GONE);
restartGame();
}
});
- loadModel();
+ setupComputerLevels();
+
render();
+ if (vsAi && game.getCurrentPlayer() == HexGame.BLUE && !game.isOver()) {
+ startAiMove();
+ }
+ }
+
+
+
+ private void setupComputerLevels() {
+ try {
+ computerLevels = ModelCatalog.load(getApplicationContext());
+ } catch (Exception exception) {
+ computerLevels = Collections.emptyList();
+ binding.computerLevelSpinner.setEnabled(false);
+ return;
+ }
+
+ ArrayAdapter<ModelCatalog.Level> adapter = new ArrayAdapter<>(this,
+ android.R.layout.simple_spinner_item, computerLevels);
+ adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
+ binding.computerLevelSpinner.setAdapter(adapter);
+ binding.computerLevelSpinner.setSelection(0, false);
+ binding.computerLevelSpinner.setOnItemSelectedListener(
+ new AdapterView.OnItemSelectedListener() {
+ @Override
+ public void onItemSelected(AdapterView<?> parent, View view,
+ int position, long id) {
+ switchComputerLevel(computerLevels.get(position));
+ }
+
+ @Override
+ public void onNothingSelected(AdapterView<?> parent) {
+ // The current selection remains active.
+ }
+ });
+ switchComputerLevel(computerLevels.get(0));
}
- private void loadModel() {
+ private void switchComputerLevel(ModelCatalog.Level level) {
+ if (level == selectedLevel && (modelLoading || valueModel != null)) {
+ return;
+ }
+
+ selectedLevel = level;
+ int selectionGeneration = modelSelectionGeneration.incrementAndGet();
+ TfliteValueModel previousModel = valueModel;
+ valueModel = null;
modelLoading = true;
+ restartGame();
+
aiExecutor.submit(() -> {
- TfliteValueModel loaded = null;
+ if (previousModel != null) {
+ previousModel.close();
+ }
+ if (selectionGeneration != modelSelectionGeneration.get()) {
+ return;
+ }
+
+ TfliteValueModel loadedModel = null;
+ Exception loadFailure = null;
try {
- loaded = new TfliteValueModel(getApplicationContext());
- } catch (Exception ignored) {
- // The screen will say that the computer is unavailable.
+ loadedModel = new TfliteValueModel(getApplicationContext(),
+ level.modelAsset, level.metadataAsset);
+ } catch (Exception exception) {
+ loadFailure = exception;
}
- TfliteValueModel result = loaded;
- runOnUiThread(() -> {
- if (isFinishing() || isDestroyed()) {
- if (result != null) result.close();
- return;
- }
- valueModel = result;
- modelLoading = false;
- render();
- });
+
+ TfliteValueModel result = loadedModel;
+ Exception failure = loadFailure;
+ runOnUiThread(() -> finishModelSwitch(
+ selectionGeneration, level, result, failure));
});
}
+ private void finishModelSwitch(int selectionGeneration, ModelCatalog.Level level,
+ TfliteValueModel loadedModel, Exception failure) {
+ if (isFinishing() || isDestroyed()
+ || selectionGeneration != modelSelectionGeneration.get()
+ || selectedLevel != level) {
+ if (loadedModel != null) {
+ loadedModel.close();
+ }
+ return;
+ }
+
+ modelLoading = false;
+ valueModel = failure == null ? loadedModel : null;
+ render();
+ }
+
private void onCellClicked(int row, int column) {
- if (aiThinking || game.isOver()
- || (vsAi && (modelLoading || valueModel == null
- || game.getCurrentPlayer() != HexGame.RED))) return;
- if (!game.play(row, column)) return;
+ if (aiThinking || (vsAi && modelLoading) || game.isOver()
+ || (vsAi && valueModel == null)
+ || (vsAi && game.getCurrentPlayer() == HexGame.BLUE)) {
+ return;
+ }
+ if (!game.play(row, column)) {
+ return;
+ }
render();
- if (vsAi && !game.isOver()) startAiMove();
+ if (vsAi && !game.isOver()) {
+ startAiMove();
+ }
}
private void startAiMove() {
TfliteValueModel model = valueModel;
if (!vsAi || model == null || game.isOver()
- || game.getCurrentPlayer() != HexGame.BLUE || aiThinking) return;
+ || game.getCurrentPlayer() != HexGame.BLUE || aiThinking) {
+ render();
+ return;
+ }
+
aiThinking = true;
render();
int generation = gameGeneration;
aiTask = aiExecutor.submit(() -> {
try {
HexGame.Move move = new HexAi(model).chooseMove(position);
- runOnUiThread(() -> {
- if (isFinishing() || isDestroyed()
- || generation != gameGeneration || !aiThinking) return;
- aiThinking = false;
- if (move != null && game.getCurrentPlayer() == HexGame.BLUE) {
- game.play(move.row, move.column);
- }
- render();
- });
+ runOnUiThread(() -> applyAiMove(generation, move));
} catch (RuntimeException exception) {
- runOnUiThread(() -> {
- if (isFinishing() || isDestroyed()
- || generation != gameGeneration) return;
- aiThinking = false;
- valueModel = null;
- aiExecutor.submit(model::close);
- render();
- });
+ runOnUiThread(() -> handleAiFailure(generation, model));
}
});
}
+ private void applyAiMove(int generation, HexGame.Move move) {
+ if (isFinishing() || isDestroyed() || generation != gameGeneration || !aiThinking) {
+ return;
+ }
+ aiThinking = false;
+ if (move != null && game.getCurrentPlayer() == HexGame.BLUE) {
+ game.play(move.row, move.column);
+ }
+ render();
+ }
+
+ private void handleAiFailure(int generation, TfliteValueModel failedModel) {
+ if (isFinishing() || isDestroyed() || generation != gameGeneration) {
+ return;
+ }
+ aiThinking = false;
+ if (valueModel == failedModel) {
+ valueModel = null;
+ aiExecutor.submit(failedModel::close);
+ }
+ render();
+ }
+
private void restartGame() {
gameGeneration++;
aiThinking = false;
aiTask = null;
}
game = new HexGame();
+ binding.boardView.setGame(game);
render();
}
private void render() {
binding.boardView.setGame(game);
- binding.boardView.setEnabled(!aiThinking && !game.isOver()
+ boolean canTap = !aiThinking && !game.isOver()
&& (!vsAi || (!modelLoading && valueModel != null
- && game.getCurrentPlayer() == HexGame.RED)));
+ && game.getCurrentPlayer() == HexGame.RED));
+ binding.boardView.setEnabled(canTap);
+
if (game.getWinner() == HexGame.RED) {
binding.statusText.setText(R.string.status_red_wins);
} else if (game.getWinner() == HexGame.BLUE) {
binding.statusText.setText(game.getCurrentPlayer() == HexGame.RED
? R.string.status_red_turn : R.string.status_blue_turn);
}
- binding.modelText.setText(vsAi
- ? (valueModel == null ? R.string.model_unavailable_help
- : R.string.model_untrained)
- : R.string.model_local);
+
+ if (!vsAi) {
+ binding.modelText.setText(R.string.model_local);
+ } else if (selectedLevel == null) {
+ binding.modelText.setText(R.string.model_unavailable_help);
+ } else if (modelLoading) {
+ binding.modelText.setText(getString(R.string.model_loading, selectedLevel.label));
+ } else if (valueModel == null) {
+ binding.modelText.setText(R.string.model_unavailable_help);
+ } else if (valueModel.isUntrainedMock()) {
+ binding.modelText.setText(R.string.model_untrained);
+ } else {
+ binding.modelText.setText(selectedLevel.description);
+ }
}
@Override
protected void onDestroy() {
gameGeneration++;
- if (aiTask != null) aiTask.cancel(true);
- TfliteValueModel model = valueModel;
+ modelSelectionGeneration.incrementAndGet();
+ if (aiTask != null) {
+ aiTask.cancel(true);
+ }
+ TfliteValueModel modelToClose = valueModel;
valueModel = null;
- if (model != null) aiExecutor.submit(model::close);
+ if (modelToClose != null) {
+ aiExecutor.submit(modelToClose::close);
+ }
aiExecutor.shutdown();
binding = null;
super.onDestroy();
מטא־דאטה וזוגות .tflite של ששת השחקנים מגיעים יחד בחבילת המורה ואינם נכתבים ידנית. אל תערבבו קובץ מודל משורה אחת עם model_info.json משורה אחרת. ברירת המחדל היא early-test. המטא־דאטה שלה מכילה untrained_mock: true, ולכן מסך הייחוס מכנה אותה מודל בדיקה אף ששמה מציין שלוש איטרציות. אל תציגו אותה כבעלת חוזק נמדד.
מריצים ומוודאים
בצעו Sync אם שיניתם Gradle, בנו את הפרויקט (assembleDebug) ואז הפעילו את האפליקציה. עברו על כל שש הבחירות: כל מעבר מאפס את הלוח; לאחר מהלך אדום מתקבלת תשובה כחולה חוקית.
שאלת הבנה: למה יש לשמור קובץ TFLite והמטא־דאטה שלו כזוג?
כך נראה המסך בסיום הפרק

בתמונה נבחר שחקן המחשב הראשון. אפשר להחליף אותו בתפריט שמעל הלוח.
